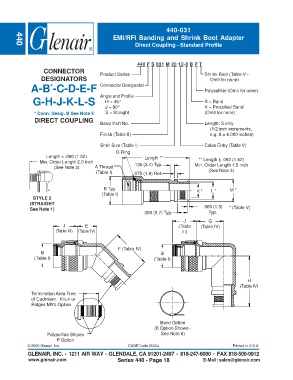

440-031
EMI/RFI Banding and Shrink Boot Adapter
Direct Coupling - Standard Profile
440

440 F S 031 M 20 12-8 B P T
CONNECTOR Product Series Shrink Boot (Table V -
DESIGNATORS Omit for none)
A-B -C-D-E-F Connector Designator Polysulfide (Omit for none)
*
G-H-J-K-L-S Angle and Profile B = Band
H = 45°
J = 90° K = Precoiled Band
* Conn. Desig. B See Note 5 S = Straight (Omit for none)
DIRECT COUPLING
Basic Part No. Length: S only
(1/2 inch increments,
Finish (Table II) e.g. 8 = 4.000 inches)

Shell Size (Table I) Cable Entry (Table V)
O-Ring
Length ± .060 (1.52) Length **
Min. Order Length 2.0 Inch .135 (3.4) Typ. ** Length ± .060 (1.52)
(See Note 3) A Thread Min. Order Length 1.5 inch
(Table I) .075 (1.9) Ref. (See Note 3)

B Typ. K * L * M *
(Table I)
STYLE 2
(STRAIGHT
See Note 1) .060 (1.5) * (Table V)
.380 (9.7) Typ. Typ.
J G
J E (Table (Table IV)
(Table III) (Table IV) III)

F (Table IV)
B B
(Table I) (Table I)

H
(Table IV)
Termination Area Free
of Cadmium. Knurl or
Ridges Mfr's Option

Band Option
(K Option Shown -
Polysulfide Stripes See Note 6)
P Option
