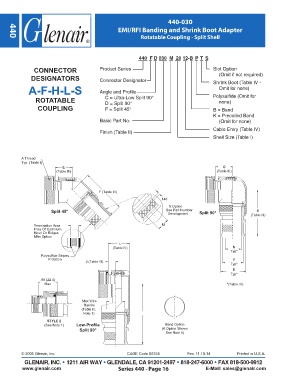

Page 402 - Circular Connector Backshells and Accessories

440-030

EMI/RFI Banding and Shrink Boot Adapter
Rotatable Coupling - Split Shell
440

440 F D 030 M 20 12-B P T S

CONNECTOR Product Series Slot Option
(Omit if not required)
DESIGNATORS Connector Designator Shrink Boot (Table IV -
A-F-H-L-S Angle and Profile Omit for none)

ROTATABLE C = Ultra-Low Split 90° Polysulfide (Omit for
none)
D = Split 90°
COUPLING F = Split 45° B = Band
K = Precoiled Band
Basic Part No. (Omit for none)
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)

A Thread
Typ. (Table I)
E G
(Table III) (Table III)

F (Table III)
.146
S Option
Split 45° See Part Number Split 90° H
Development (Table III)

Termination Area M
Free Of Cadmium.
Knurl Or Ridges
Mfrs Option
L
(Table III) N
Typ*
Polysulfide Stripes
P Option P
J (Table III)
Typ*
R
Typ*
.88 (22.4)
Max *(Table IV)

Max Wire
Bundle
(Table III,
Note 1)
STYLE 2
(See Note 1) Low-Profile Band Option
Split 90° (K Option Shown
See Note 5)

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 11.10.14 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 440 - Page 16 E-Mail: sales@glenair.com
