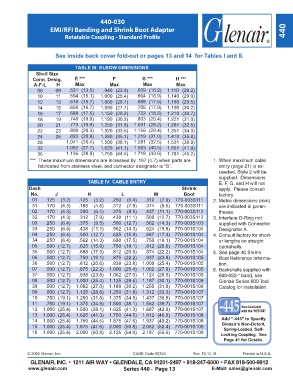

Page 399 - Circular Connector Backshells and Accessories

440-030

EMI/RFI Banding and Shrink Boot Adapter 440
Rotatable Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E *** F G *** H ***
A-F-L H Max Max Max Max
08 09 .531 (13.5) .940 (23.9) .639 (16.2) 1.110 (28.2)
10 11 .594 (15.1) 1.000 (25.4) .664 (16.9) 1.140 (29.0)
12 13 .618 (15.7) 1.050 (26.7) .688 (17.5) 1.160 (29.5)
14 15 .656 (16.7) 1.090 (27.7) .705 (17.9) 1.190 (30.2)
16 17 .688 (17.5) 1.150 (29.2) .732 (18.6) 1.210 (30.7)
18 19 .748 (19.0) 1.190 (30.2) .803 (20.4) 1.221 (31.0)
20 21 .773 (19.6) 1.250 (31.8) 1.031 (26.2) 1.281 (32.5)
22 23 .800 (20.3) 1.320 (33.5) 1.156 (29.4) 1.351 (34.3)
24 25 .823 (20.9) 1.380 (35.1) 1.219 (31.0) 1.410 (35.8)
28 1.041 (26.4) 1.500 (38.1) 1.281 (32.5) 1.531 (38.9)
32 1.092 (27.7) 1.620 (41.1) 1.593 (40.5) 1.651 (41.9)
36 1.136 (28.9) 1.750 (44.5) 1.718 (43.6) 1.781 (45.2)
*** These maximum dimensions are increased by .187 (4.7) when parts are 1. When maximum cable
fabricated from stainless steel, and connector designator is “S”. entry (page 21) is ex-
ceeded, Style 2 will be
supplied. Dimensions
TABLE IV: CABLE ENTRY E, F, G, and H will not
Dash Shrink apply. Please consult
No. J K L M Boot factory.
01 .125 (3.2) .125 (3.2) .250 (6.4) .312 (7.9) 770-003S111 2. Metric dimensions (mm)
31 .170 (4.3) .188 (4.8) .312 (7.9) .374 (9.5) 770-003S111 are indicated in paren-
02 .170 (4.3) .250 (6.4) .375 (9.5) .437 (11.1) 770-003S112 theses.
32 .170 (4.3) .312 (7.9) .438 (11.1) .500 (12.7) 770-003S112 3. Interface O-Ring not
03 .250 (6.4) .375 (9.5) .500 (12.7) .562 (14.3) 770-003S103 supplied with Connector
33 .250 (6.4) .438 (11.1) .562 (14.3) .624 (15.8) 770-001S104 Designator A.
04 .250 (6.4) .500 (12.7) .625 (15.9) .687 (17.4) 770-001S104 4. Consult factory for short-
34 .250 (6.4) .562 (14.3) .688 (17.5) .750 (19.1) 770-001S104 er lengths on straight
05 .500 (12.7) .625 (15.9) .750 (19.1) .812 (20.6) 770-001S104 backshells.
35 .500 (12.7) .688 (17.5) .812 (20.6) .874 (22.2) 770-001S104 5. See page 40 Shrink
06 .500 (12.7) .750 (19.1) .875 (22.2) .937 (23.8) 770-001S105 Boot Reference Informa-
36 .500 (12.7) .812 (20.6) .938 (23.8) 1.000 (25.4) 770-001S105 tion.
07 .500 (12.7) .875 (22.2) 1.000 (25.4) 1.062 (27.0) 770-001S105 6. Backshells supplied with
37 .500 (12.7) .938 (23.8) 1.062 (27.0) 1.124 (28.5) 770-001S105 600-052-* band, see
08 .500 (12.7) 1.000 (25.4) 1.125 (28.6) 1.187 (30.1) 770-001S106 Glenair Series 600 Tool
38 .500 (12.7) 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) 770-001S106 Catalog for installation.
09 .500 (12.7) 1.125 (28.6) 1.250 (31.8) 1.312 (33.3) 770-001S107
10 .750 (19.1) 1.250 (31.8) 1.375 (34.9) 1.437 (36.5) 770-001S107
11 .750 (19.1) 1.375 (34.9) 1.500 (38.1) 1.562 (39.7) 770-001S107
Now Available
12 1.000 (25.4) 1.500 (38.1) 1.625 (41.3) 1.687 (42.8) 770-001S107 with the “NESTOR”
13 1.000 (25.4) 1.625 (41.3) 1.750 (44.5) 1.812 (46.0) 770-001S108
14 1.000 (25.4) 1.750 (44.5) 1.875 (47.6) 1.937 (49.2) 770-001S108 Add “-445” to Specify
Glenair’s Non-Detent,
15 1.000 (25.4) 1.875 (47.6) 2.000 (50.8) 2.062 (52.4) 770-001S109 Spring-Loaded, Self-
16 1.000 (25.4) 2.000 (50.8) 2.125 (54.0) 2.187 (55.5) 770-001S109 Locking Coupling. See
Page 41 for Details.
