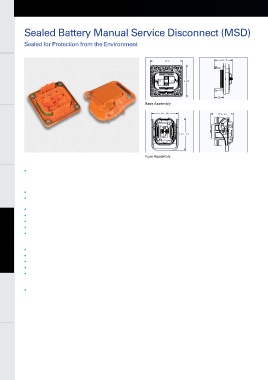

HV Auxiliary Modules Sealed Battery Manual Service Disconnect (MSD)

Sealed for Protection from the Environment
HV Auxiliary Modules

HV Power Conversion

Base Assembly

Chargers & Charging Cables

Application Fuse Assembly
• Sealed battery manual service disconnect used for
servicing HV system
Charging Inlets Description

• Panel mount to device with face seal to case
• Base mounts from inside with threaded inserts to attach
to battery
• Optional splash proof base
• Two-stage lever provides HVIL time delay
Internal Battery Connections Internal Battery Connections • MSD keyed/indexed per fuse rating
• Integrated HVIL with shunt in MSD portion
• High speed fuse with various ratings in same package size

Performance
• Current capacity: Call to discuss application
• Voltage: 690V
• Temperature range: -40°C to +85°C
• Sealing protection: IP67, IP6K9K (N.A. to splash version)
• Electrical protection: IP2XB
