Page 510 - Circular Connector Backshells and Accessories
P. 510

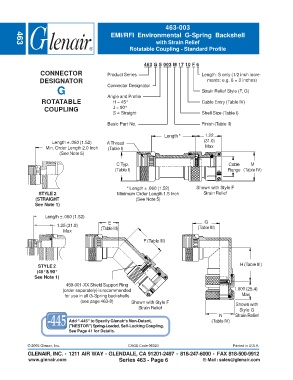

463-003
                                               EMI/RFI Environmental G-Spring Backshell
                                                                  with Strain Relief
        463
                                                       Rotatable Coupling - Standard Profile

                                                             463 G S 003 M 17 10 F 6
                  CONNECTOR                   Product Series                         Length: S only (1/2 inch incre-
                  DESIGNATOR                                                            ments: e.g. 6 = 3 inches)
                         G                    Connector Designator                   Strain Relief Style (F, G)
                                              Angle and Profile
                  ROTATABLE                     H = 45°                              Cable Entry (Table IV)
                    COUPLING                    J = 90°
                                                S = Straight                         Shell Size (Table I)

                                              Basic Part No.                         Finish (Table II)

                                                                      Length *         1.22
                       Length ± .060 (1.52)   A Thread                                (31.0)
                    Min. Order Length 2.0 Inch  (Table I)                              Max
                          (See Note 5)

                                                  C Typ.                                         Cable    M
                                                 (Table I)                                      Range (Table IV)


                                                      * Length ± .060 (1.52)       Shown with Style F
                 STYLE 2                          Minimum Order Length 1.5 Inch       Strain Relief
                (STRAIGHT                                 (See Note 5)
                See Note 1)

                    Length ± .060 (1.52)
                                              E                                        G
                         1.25 (31.8)                                                (Table III)
                           Max             (Table III)
                                                             F (Table III)





                 STYLE 2                                                                             H (Table III)
                (45° & 90°
               See Note 1)
                             469-001-XX Shield Support Ring
                           (order separately) is recommended                                       1.000 (25.4)
                            for use in all G-Spring backshells                                        Max
                                   (see page 463-8)     Shown with Style F                         Shown with
                                                           Strain Relief                             Style G
                                                                                             N     Strain Relief
                              Add “-445” to Specify Glenair’s Non-Detent,                (Table IV)
                              ("NESTOR") Spring-Loaded, Self-Locking Coupling.
                              See Page 41 for Details.


             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 463 - Page 6                E-Mail: sales@glenair.com
