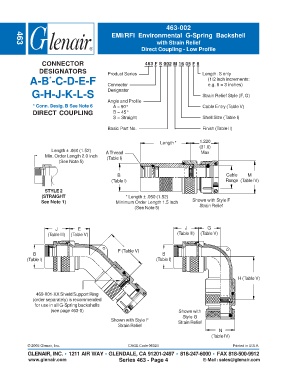

463-002
EMI/RFI Environmental G-Spring Backshell
with Strain Relief
463
Direct Coupling - Low Profile

CONNECTOR 463 F S 002 M 16 05 F 6
DESIGNATORS Product Series Length: S only
A-B -C-D-E-F Connector (1/2 inch increments:
*
e.g. 6 = 3 inches)
G-H-J-K-L-S Designator Strain Relief Style (F, G)

Angle and Profile
* Conn. Desig. B See Note 6 A = 90° Cable Entry (Table V)
DIRECT COUPLING B = 45°
S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)

Length * 1.220
(31.0)
Length ± .060 (1.52) A Thread Max
Min. Order Length 2.0 Inch (Table I)
(See Note 5)

B Cable M
(Table I) Range (Table IV)

STYLE 2
(STRAIGHT * Length ± .060 (1.52)
See Note 1) Minimum Order Length 1.5 Inch Shown with Style F
(See Note 5) Strain Relief

J E J G
(Table III) (Table V) (Table III) (Table V)

F (Table V)
B B
(Table I) (Table I)

H (Table V)

469-001-XX Shield Support Ring
(order separately) is recommended
for use in all G-Spring backshells
(see page 463-8) Shown with
Style G
Shown with Style F Strain Relief
Strain Relief
N
(Table IV)
