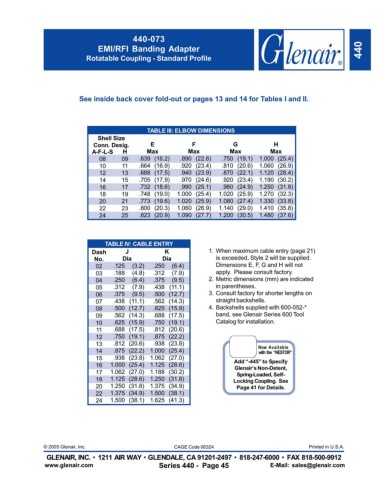

Page 431 - Circular Connector Backshells and Accessories
P. 431
440-073
EMI/RFI Banding Adapter 440
Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .639 (16.2) .890 (22.6) .750 (19.1) 1.000 (25.4)
10 11 .664 (16.9) .920 (23.4) .810 (20.6) 1.060 (26.9)
12 13 .688 (17.5) .940 (23.9) .870 (22.1) 1.120 (28.4)
14 15 .705 (17.9) .970 (24.6) .920 (23.4) 1.190 (30.2)
16 17 .732 (18.6) .990 (25.1) .980 (24.9) 1.250 (31.8)
18 19 .748 (19.0) 1.000 (25.4) 1.020 (25.9) 1.270 (32.3)
20 21 .773 (19.6) 1.020 (25.9) 1.080 (27.4) 1.330 (33.8)
22 23 .800 (20.3) 1.060 (26.9) 1.140 (29.0) 1.410 (35.8)
24 25 .823 (20.9) 1.090 (27.7) 1.200 (30.5) 1.480 (37.6)
TABLE IV: CABLE ENTRY
Dash J K 1. When maximum cable entry (page 21)
No. Dia Dia is exceeded, Style 2 will be supplied.
02 .125 (3.2) .250 (6.4) Dimensions E, F, G and H will not
03 .188 (4.8) .312 (7.9) apply. Please consult factory.
04 .250 (6.4) .375 (9.5) 2. Metric dimensions (mm) are indicated
05 .312 (7.9) .438 (11.1) in parentheses.
06 .375 (9.5) .500 (12.7) 3. Consult factory for shorter lengths on
07 .438 (11.1) .562 (14.3) straight backshells.
08 .500 (12.7) .625 (15.9) 4. Backshells supplied with 600-052-*
09 .562 (14.3) .688 (17.5) band, see Glenair Series 600 Tool
10 .625 (15.9) .750 (19.1) Catalog for installation.
11 .688 (17.5) .812 (20.6)
12 .750 (19.1) .875 (22.2)
13 .812 (20.6) .938 (23.8)
14 .875 (22.2) 1.000 (25.4) Now Available
with the “NESTOR”
15 .938 (23.8) 1.062 (27.0) Add “-445” to Specify
16 1.000 (25.4) 1.125 (28.6) Glenair’s Non-Detent,
17 1.062 (27.0) 1.188 (30.2) Spring-Loaded, Self-
18 1.125 (28.6) 1.250 (31.8) Locking Coupling. See
20 1.250 (31.8) 1.375 (34.9) Page 41 for Details.
22 1.375 (34.9) 1.500 (38.1)
24 1.500 (38.1) 1.625 (41.3)
