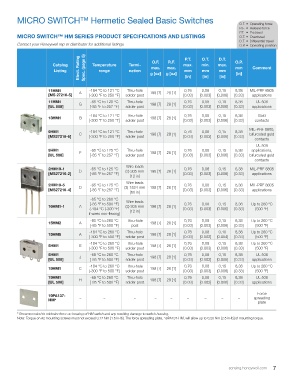

Page 7 - MICRO SWITCH Hermetic Sealed Basic Switches

MICRO SWITCH™ Hermetic Sealed Basic Switches O.F. • Operating force

R.F. • Release force
P.T. • Pretravel
MICRO SWITCH™ HM SERIES PRODUCT SPECIFICATIONS AND LISTINGS O.T. • Overtravel
D.T. • Differential travel
Contact your Honeywell rep or distributor for additional listings O.P. • Operating position

Elect. Rating Spec. (page 5) max. max. mm Comment
P.T.
D.T.
O.T.
Catalog Temperature Termi- O.F. R.F. max. min. max. O.P.
Listing range nation g [oz] g [oz] mm mm mm [in]
[in]
[in]
[in]
11HM1 A -184 °C to 121 °C Thru-hole 198 [7] 28 [1] 0,76 0,08 0,15 8,38 MIL-PRF 8805
[MS 27216-5] [-300 °F to 250 °F] solder post [0.03] [0.003] [0.006] [0.33] applications
11HM1 G -65 °C to 125 °C Thru-hole 198 [7] 28 [1] 0,76 0,08 0,15 8,38 UL 508
[UL 508] [-85 °F to 257 °F] solder post [0.03] [0.003] [0.006] [0.33] applications

-184 °C to 121 °C Thru-hole 0,76 0,08 0,15 8,38 Gold
13HM1 B 198 [7] 28 [1]
[-300 °F to 250 °F] solder post [0.03] [0.003] [0.006] [0.33] contacts
MIL-PRF 8805,
9HM1 -184 °C to 121 °C Thru-hole 0,76 0,08 0,15 8,38
[MS27216-6] C [-300 °F to 250 °F] solder post 198 [7] 28 [1] [0.03] [0.003] [0.006] [0.33] bifurcated gold
contacts
UL 508
9HM1 F -65 °C to 125 °C Thru-hole 198 [7] 28 [1] 0,76 0,08 0,15 8,38 applications,
[UL 508] [-85 °F to 257 °F] solder post [0.03] [0.003] [0.006] [0.33] bifurcated gold
contacts
Wire leads
2HM19-1 D -65 °C to 125 °C (3) 305 mm 198 [7] 28 [1] 0,76 0,08 0,15 8,38 MIL-PRF 8805
[MS27216-2] [-85 °F to 257 °F] [0.03] [0.003] [0.006] [0.33] applications
[12 in]
Wire leads
2HM19-5 D -65 °C to 125 °C (3) 1524 mm 198 [7] 28 [1] 0,76 0,08 0,15 8,38 MIL-PRF 8805
[MS27216-4] [-85 °F to 257 °F] [0.03] [0.003] [0.006] [0.33] applications
[60 in]
-65 °C to 260 °C
[-85 °F to 500 °F] Wire leads 0,76 0,08 0,15 8,38 Up to 260 °C
16HM1-1 A (3) 305 mm 198 [7] 28 [1]
(-184 °C [-300 °F] [0.03] [0.003] [0.006] [0.33] [500 °F]
if wires non-flexing) [12 in]
-65 °C to 260 °C Thru-hole 0,76 0,08 0,15 8,38 Up to 260 °C
15HM2 A 198 [7] 28 [1]
[-85 °F to 500 °F] post [0.03] [0.003] [0.006] [0.33] [500 °F]
-184 °C to 260 °C Thru-hole 0,76 0,08 0,10 8,38 Up to 260 °C
15HM5 A 198 [7] 28 [1]
[-300 °F to 500 °F] solder post [0.03] [0.003] [0.004] [0.33] [500 °F]
-184 °C to 260 °C Thru-hole 0,76 0,08 0,15 8,38 Up to 260 °C
5HM1 E 198 [7] 28 [1]
[-300 °F to 500 °F] solder post [0.03] [0.003] [0.006] [0.33] [500 °F]
5HM1 J -65 °C to 260 °C Thru-hole 198 [7] 28 [1] 0,76 0,08 0,15 8,38 UL 508
[UL 508] [-85 °F to 500 °F] solder post [0.03] [0.003] [0.006] [0.33] applications
-184 °C to 260 °C Thru-hole 0,76 0,08 0,15 8,38 Up to 260 °C
19HM1 C 198 [7] 28 [1]
[-300 °F to 500 °F] solder post [0.03] [0.003] [0.006] [0.33] [500 °F]
19HM1 H -65 °C to 260 °C Thru-hole 198 [7] 28 [1] 0,76 0,08 0,15 8,38 UL 508
[UL 508] [-85 °F to 500 °F] solder post [0.03] [0.003] [0.006] [0.33] applications

19PA137- Force
HM* – – – – – – – – – spreading
plate
* Recommended to minimize force on housing of HM switch and any resulting damage to switch housing.
Note: Torque on #2 mounting screws must not exceed 0,17 Nm [1.5 in-lb]. The force spreading plate, 19PA137-HM, will allow up to 0,28 Nm [2.5 in-lb] of mounting torque.

sensing.honeywell.com 7
