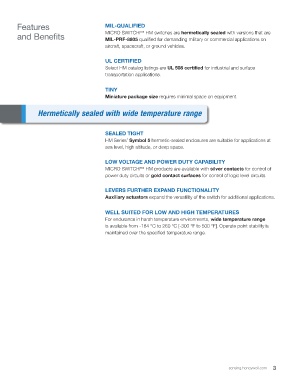

Page 3 - MICRO SWITCH Hermetic Sealed Basic Switches
P. 3
F
Features eatures MIL-QUALIFIED
and Benefits nd Benefits
a MICRO SWITCH™ HM switches are hermetically sealed with versions that are
MIL-PRF-8805 qualified for demanding military or commercial applications on
aircraft, spacecraft, or ground vehicles.
UL CERTIFIED
Select HM catalog listings are UL 508 certified for industrial and surface
transportation applications.
TINY
Miniature package size requires minimal space on equipment.
Hermetically sealed with wide temperature range
SEALED TIGHT
HM Series’ Symbol 5 hermetic-sealed enclosures are suitable for applications at
sea level, high altitude, or deep space.
LOW VOLTAGE AND POWER DUTY CAPABILITY
MICRO SWITCH™ HM products are available with silver contacts for control of
power duty circuits or gold contact surfaces for control of logic level circuits.
LEVERS FURTHER EXPAND FUNCTIONALITY
Auxiliary actuators expand the versatility of the switch for additional applications.
WELL SUITED FOR LOW AND HIGH TEMPERATURES
For endurance in harsh temperature environments, wide temperature range
is available from -184 °C to 260 °C [-300 °F to 500 °F]. Operate point stability is
maintained over the specified temperature range.
sensing.honeywell.com 3
