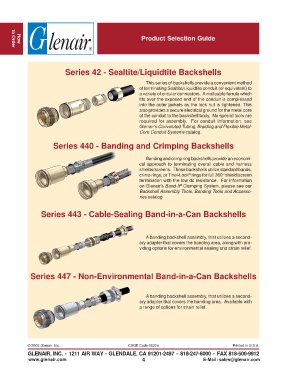

Page 6 - Circular Connector Backshells and Accessories

Product Selection Guide
How
to Order

Series 42 - Sealtite/Liquidtite Backshells

This series of backshells provide a convenient method
of terminating Sealtite/Liquidtite conduit (or equivalent) to
a variety of circular connectors. A malleable ferrule which
fits over the exposed end of the conduit is compressed
into the outer jackets as the lock nut is tightened. This
also provides a secure electrical ground for the metal core
of the conduit to the backshell body. No special tools are
required for assembly. For conduit information, see
Glenair's Convoluted Tubing, Braiding and Flexible Metal-
Core Conduit Systems catalog.

Series 440 - Banding and Crimping Backshells

Banding and crimp ring backshells provide an economi-
cal approach to terminating overall cable and harness
shields/screens. These backshells utilize standard bands,
crimp rings, or Tinel-Lock rings for full 360° shield/screen
®
termination with the low dc resistance. For information
on Glenair's Band-It Clamping System, please see our
®
Backshell Assembly Tools, Banding Tools and Accesso-
ries catalog

Series 443 - Cable-Sealing Band-in-a-Can Backshells

A banding backshell assembly, that utilizes a second-
ary adapter that covers the banding area, along with pro-
viding options for environmental sealing and strain relief.

Series 447 - Non-Environmental Band-in-a-Can Backshells

A banding backshell assembly, that utilizes a second-
ary adapter that covers the banding area. Available with
a range of options for strain relief.
